Atlas

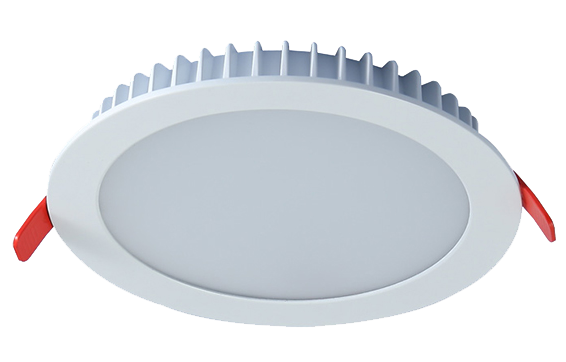

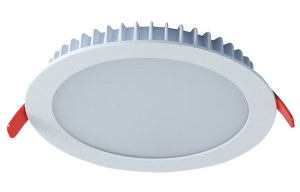

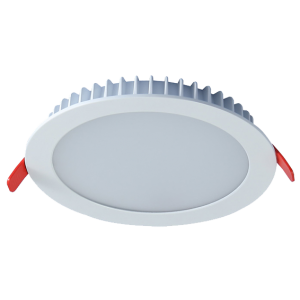

The Atlas is a 140mm diameter low void downlight which uses a Samsung LED engine. The heatsink is constructed from die-cast aluminium complete with aluminium bezel and reflector. The heatsink features spring arms which allows the downlight to be installed with ease.

The Atlas is available in outputs from 810lm, 1,080lm and 1,350lm outputs.

Icon View product datasheet

Icon Download brochure

  • Instant on - no flicker
  • Environmentally Friendly - No mercury or lead enters the environment
  • No RF and electronic magnetic interference
  • Over 50,000 hours life span



General

Dimensions

Ø140 x 27mm

Cutout

Ø125mm

Installation

Recessed

Beam Angle

90°

Voltage

AC220-240V

Certification

CE, ROHS

Warranty

5 Years



Performance

Colour Rendering

Ra>80

Longevity

50,000 hours

System Power

9 W
12 W
15 W

Exit Lumens

810 lm
1,080 lm
1,350 lm

Efficiency

90.0 ll/cW

Compliance

Building Regulations
ETL (Energy Technology List)
ECA (Enhanced Capital Allowance)
SKA Rating

Use the product builder to help you select your product and download the right datasheet.

Launch Product Builder

Available options
Wattage 9W - 810 lm
12W - 1080 lm
15W - 1350 lm
Colour White
Special RAL Colour
Colour Temperature 3000K
4000K
5000K
Dimming Fixed Output
1-10V Dimming
DALI Dimming
Mains Dimming
Switch Dimming
Emergency Not Required
3 Hour Facility
3 Hour Self Test
3 Hour Central Test
