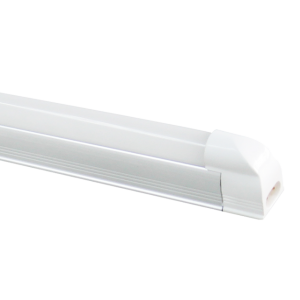

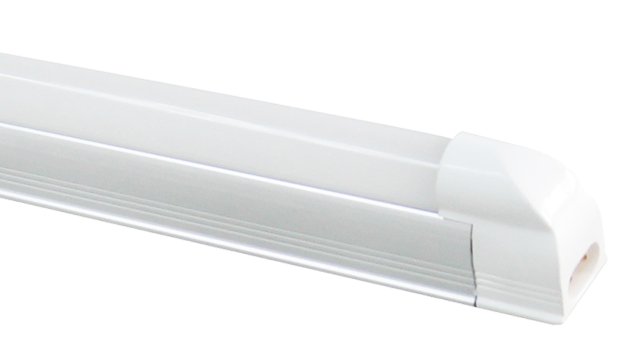

T5 Tube Integrated


The LED T5 integrated lamp is available in 600mm, 900mm, 1200mm and 1500mm lengths. The LED lamp uses an aluminium heat sink allowing the tube to be operated in conditions of -10°C to 40°C. All lamps are supplied with rotatable end caps as standard for ease of installation and set up.

The LED T5 lamp is available with a frosted or clear diffuser.

Icon View product datasheet

Features

• Built-in power supply
• Over 50,000 hours lifespan
• Low energy consumption
• No UV or IR radiation
• No mercury or hazardous materials
• Low CO2 emission, environment-friendly
• 3 Year warranty



Specifications

Voltage

AC100-240V

Beam Angle

120°

Power Consumption

10-24W

Colour Temperature

2700-7000K

Rendering Index (Ra)

›80

LEDs

2835 SMD LEDs



Use the product builder to help you select your product and download the right datasheet.

Launch Product Builder

Available options
Length 600mm (2ft) - 950Lm - 10W
600mm (2ft) - 1140Lm - 12W
900mm (3ft) - 1330Lm - 14W
900mm (3ft) - 1440Lm - 16W
1200mm (4ft) - 1710Lm - 18W
1200mm (4ft) - 2280Lm - 18W
1500mm (5ft) - 2280Lm - 24W
1500mm (5ft) - 2660Lm - 28W
Colour Temperature 3000k
4000k
6000k
Lens Cover Frosted
Clear
Power Single End
Double End
Endcaps Rotatable Endcaps
Fixed Endcaps
Sensor Microwavable Sensor
Sensor not Required
LED - PRODUCT BUILDER & DATA SHEET DOWNLOAD close  X

T5 Tube Integrated

Select your option

T5-I-0600-10W-3K-F-1-RC-MS
