Plutus Single

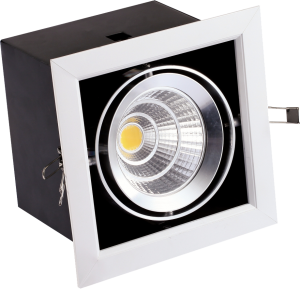

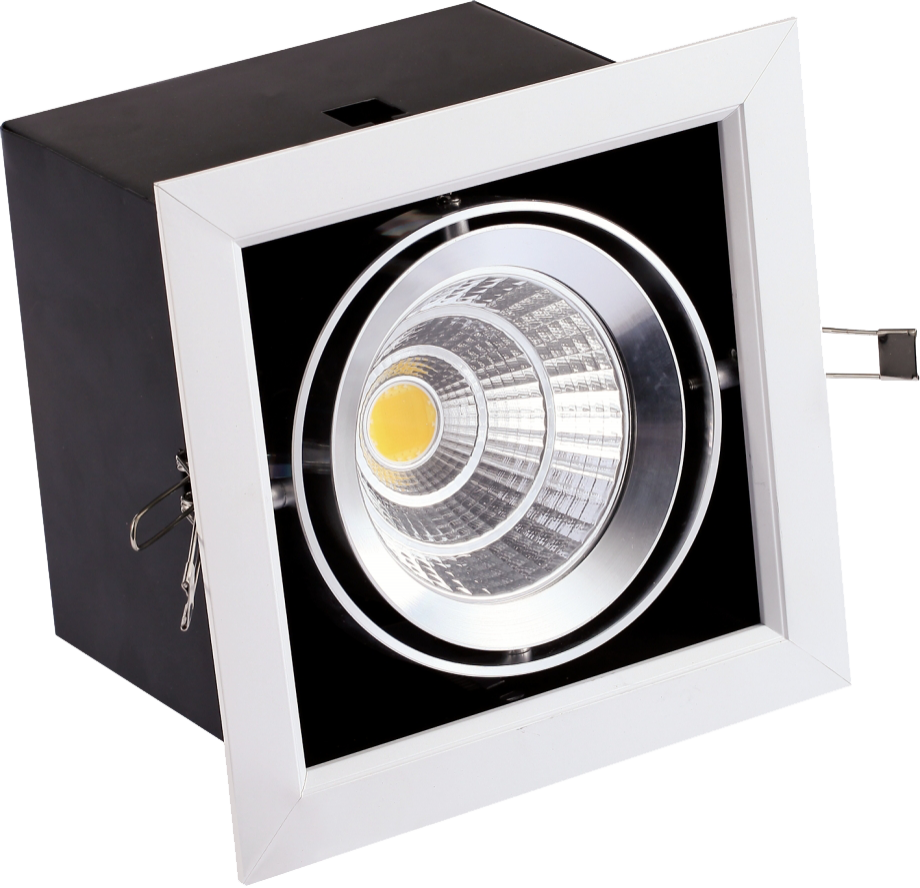

The Plutus Single LED is a 180 x 190mm gimbal recessed downlight using CREE LED engines. The gimbal LED head is mounted in a steel box housing with black internal finish.

The LED head has a 30° x 30° range. The bezel has a deep recess detail creating a glare friendly cut-off which is also an aesthetically pleasing architectural detail.

Icon View product datasheet

  • CREE LED Engine
  • Instant on - no flicker
  • Environmentally Friendly - No mercury or lead enters the environment
  • No RF and electronic magnetic interference
  • Over 50,000 hours life span
  • Dimming Options
General

Dimensions

190 x 190 x 176mm

Cutout

160 x 160mm

Weight

0.85kg

Installation

Recessed

Voltage

220-240 Vac
110 Vac

Certification

CE, ROHS

Warranty

5 Years



Performance

Colour Rendering

Ra>80

Longevity

50,000 hours

System Power

32.7 W

Exit Lumens

2,510 lm

Efficiency

76.8 ll/cW



Use the product builder to help you select your product and download the right datasheet.

Launch Product Builder

Available options
Colour Temperature 3000K
4000K
5000K
Beam Angle 15°
24°
60°
Dimmable Fixed Output
1-10V Dimming
DALI Dimmable
LED - PRODUCT BUILDER & DATA SHEET DOWNLOAD close  X

Plutus Single

Select your option

PLT-S-30-3K-15-0
DOWNLOAD DATA SHEET
