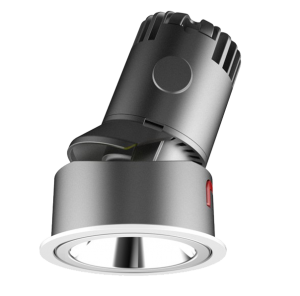

Draco A Mini

Overview
Details

The Draco A Mini LED is a 95mm diameter downlight which uses a CREE LED engine. The heatsink is constructed from die-cast aluminium complete with aluminium bezel and reflector. The Draco uses a high brightness twin reflector creating an anti-glare friendly cut-off. The bezel has 350° degrees of rotation with a 30° tilt.

The Draco Mini A is available in 640 lm, 800 lm, 960 lm and 1,200 lm outputs.

View product datasheet

Download brochure

CREE LED Engine
Cast Aluminium
Instant on - no flicker
Environmentally Friendly - No mercury or lead enters the environment
No RF and electronic magnetic interference
Over 50,000 hours life span

General

Dimensions	Ø95 x 125mm
Cutout	Ø85mm
Installation	Ceiling Tile Plasterboard
Beam Angle	15° 24° 30° 36° 45°
Voltage	AC220-240V
Certification	CE, ROHS
Warranty	5 Years

Performance

Colour Rendering	Ra>80/90
Longevity	50,000 hours
System Power	8 W 10 W 12 W 15 W
Exit Lumens	640 lm 800 lm 960 lm 1200 lm
Efficiency	80.0 ll/cW
Compliance	Building Regulations ETL (Energy Technology List) ECA (Enhanced Capital Allowance) SKA Rating

Use the product builder to help you select your product and download the right datasheet.

Launch Product Builder

Available options

Wattage	8W - 640 lm 10W - 800 lm 12W - 960 lm 15W - 1200 lm
Colour	White Special RAL Colour
Colour Temperature	3000K 4000K 5000K
Beam Angle	15° Beam 24° Beam 30° Beam 36° Beam
Dimming	Fixed Output 1-10V Dimming DALI Dimming Mains Dimming Switch Dimming
Emergency	Not Required 3 Hour Facility 3 Hour Self Test 3 Hour Central Test
