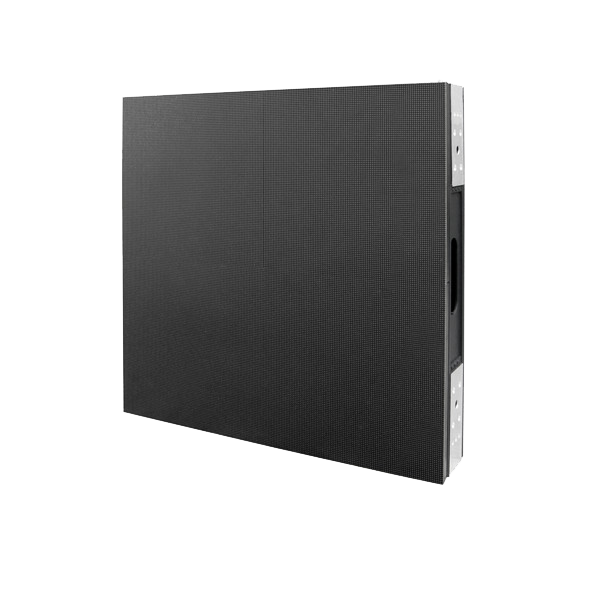

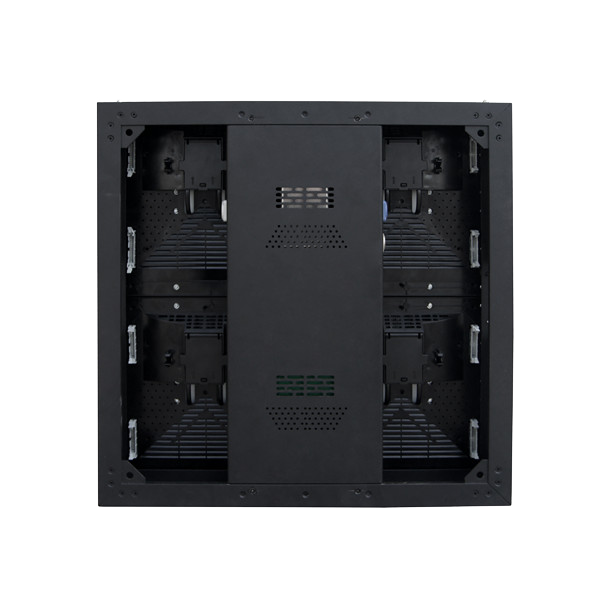

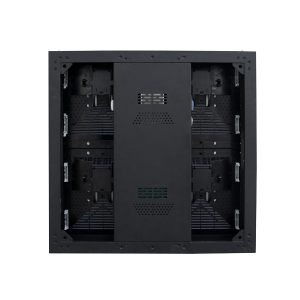

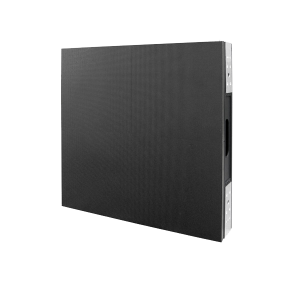

2.5mm Pixel Pitch, Indoor LED Floor Screens
View product datasheet
- Front maintenance design, maintenance efficiency is 10 times higher than traditional method, significantly saving time needed for maintenance
- Free of fans and air conditions, excluding noise and reducing power consumption.
- Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.
|
Item
|
Parameters
|
|
Model
|
QI-SC-2.5
|
|
Pixel Pitch
|
2.5mm
|
|
Pixel Density
|
160,000dots/m2
|
|
LED Configuration
|
1R,1G,1B
|
|
Colours
|
>16.7 M
|
|
Brightness
|
1,200CD/m2
|
|
Gray Scale
|
14bit
|
|
Refresh Rate
|
>1920HZ
|
|
Viewing Angle
|
110°(Horizontal)
55°(Vertical)
|
|
Dimension
|
500mm x 500mm
|
|
Resolution
|
200 x 200
|
|
Weight
|
13kg
|
|
Protection Level
|
IP43
|
|
Input Voltage
|
AC 110V~240VAC(50/60)
|
|
Source
|
DVI, RGB, CVBS, HDMI, YUV, SDI etc
|
|
Temperature
|
-20°C ~ +40°C (operating)
-20°C ~ +60°C (storage)
|
|
Humidity
|
10% ~ 90% (operating)
10% ~ 85% (storage)
|
