Quasar

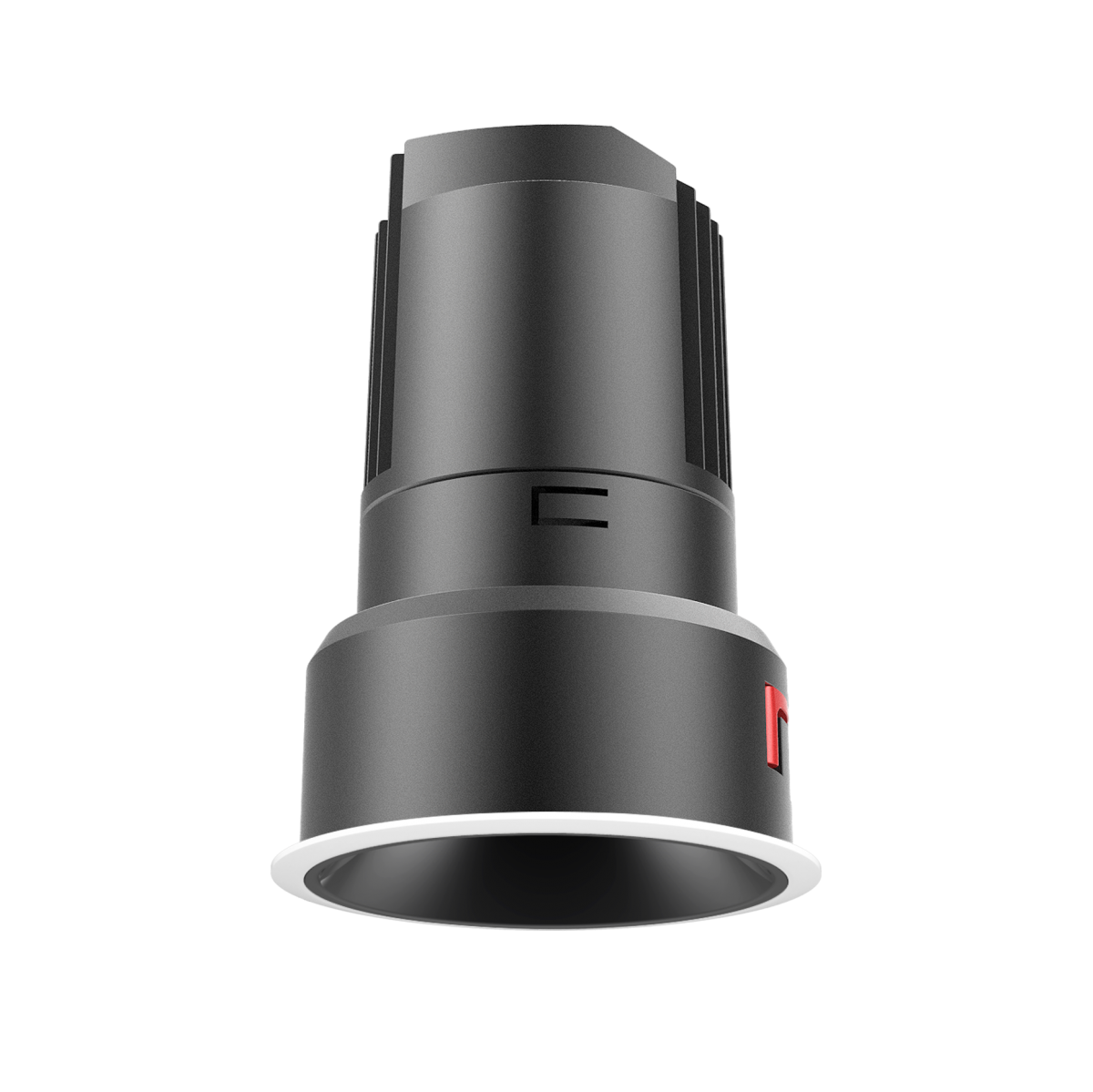

The Quasar LED is a 110mm diameter recessed downlight which uses a CREE LED engine. The heatsink is constructed from die-cast aluminium complete with an aluminium bezel and coloured reflector recess detail which both mitigates glare and is also an aesthetically pleasing architectural detail. Quasar Downlights are available as either fixed or adjustable with up to 30° of tilt.

Icon View product datasheet

  • CREE LED Engine
  • High CRI Options available
  • IP65 Version Available
  • Cast Aluminium
  • Instant on - no flicker
  • Environmentally Friendly - No mercury or lead enters the environment
  • No RF and electronic magnetic interference
  • Over 50,000 hours life span
General

Dimensions

Ø110 x 150mm (20W / 25W)

Ø110 x 165mm (30W)

Cutout

Ø100mm

Weight

0.47kg

Installation

Ceiling Tile
Plasterboard

Voltage

220-240Vac

Certification

CE, ROHS

Warranty

5 Years

IP Rating

 IP20 (IP65 also available)
Performance

Colour Rendering

Ra>90 - Ra>98

UGR

<19

MacAdam Ellipse

3 Step

System Power

20W

25W

30W

Exit Lumens

1600 lm

1800 lm

2000 lm

Efficiency

66 - 80 lm/W

Longevity

L80 / B20 @ 50,000 hours

Compliance

Building Regulations
ETL (Energy Technology List)
ECA (Enhanced Capital Allowance)
SKA Rating

Use the product builder to help you select your product and download the right datasheet.

Launch Product Builder

Available options
Bezel Fixed
Adjustable
Wattage 20W
25W
30W
Colour White
Insert Colour Black
Chrome
White
Gold
Colour Temperature 2700K
3000K
4000K
Warm Dim (1800 - 3000K)
CRI 90
95
98
Lens Clear
Beam Angle 18° Beam
24° Beam
36° Beam
45° Beam
Dimming Fixed Output
1-10V Dimming
DALI Dimming
Mains Dimming
Switch Dimming
Emergency Not required
3 Hour Facility
3 Hour Self Test
3 Hour Central Test
LED - PRODUCT BUILDER & DATA SHEET DOWNLOAD close  X

Quasar

Select your option

QSR-S-F-20-W-B-2K-90-CR-18-0-0
DOWNLOAD DATA SHEET
