Quasar Mini Square

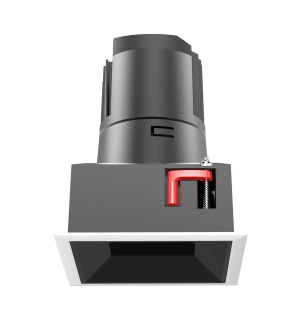

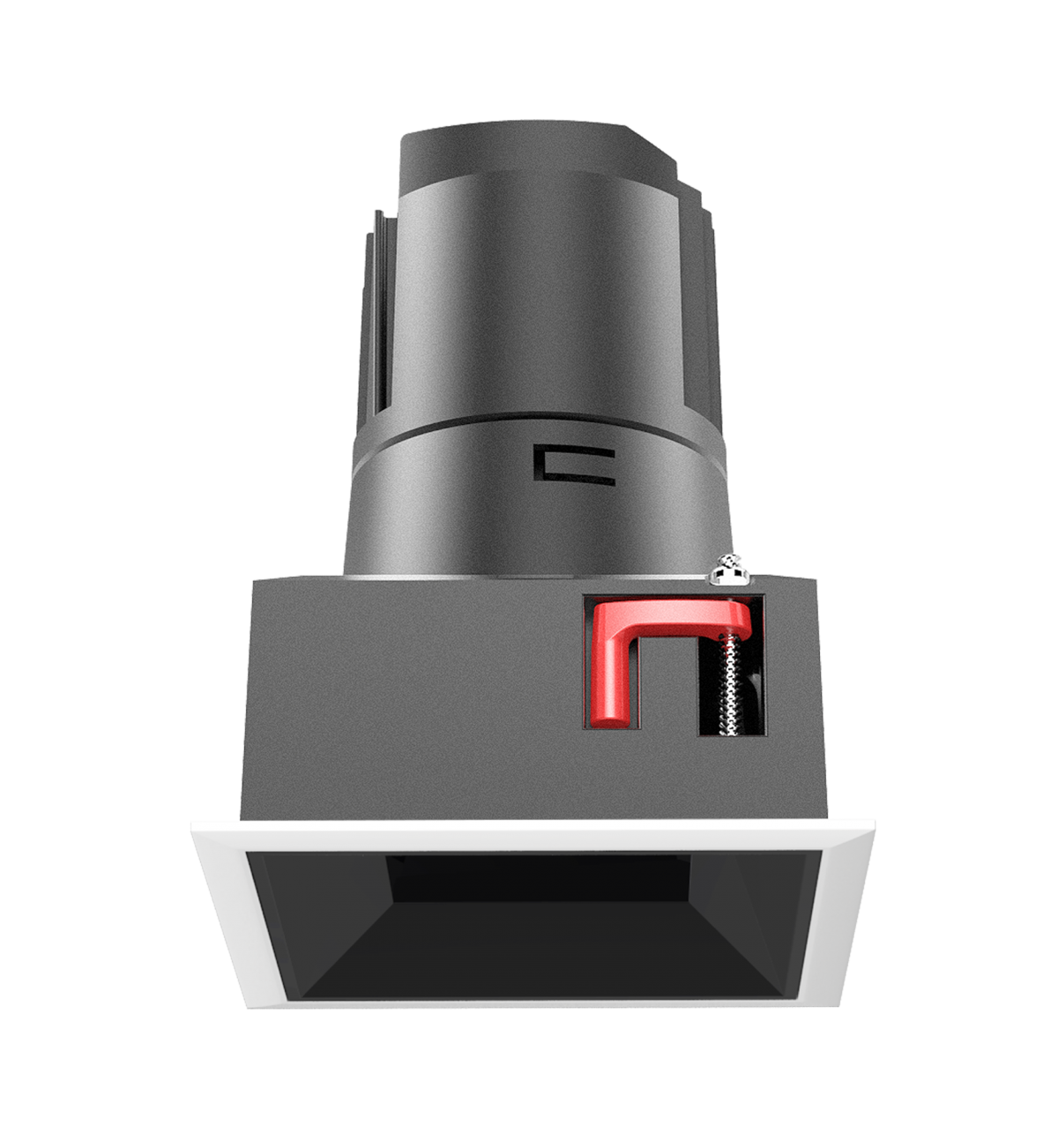

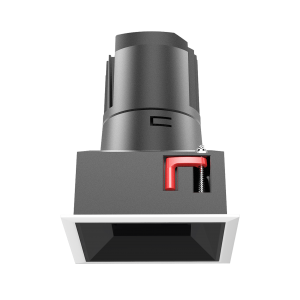

The Quasar Mini Square LED is a 85mm by 85mm recessed downlight which uses a CREE LED engine. The heatsink is constructed from die-cast aluminium complete with an aluminium bezel and coloured reflector recess detail which both mitigates glare and is also an aesthetically pleasing architectural detail. Quasar Downlights are available as either fixed or adjustable with up to 30° of tilt.

Icon View product datasheet

  • CREE LED Engine
  • Cast Aluminium
  • Instant on - no flicker
  • Environmentally Friendly - No mercury or lead enters the environment
  • No RF and electronic magnetic interference
  • Over 50,000 hours life span
Dimensions 85 x 85 x 110mm
Cutout 75 x 75mm
Weight 0.47kg
Installation Ceiling Tile
Plasterboard
Voltage 220-240Vac
Certification CE, ROHS
Warranty 5 Years
IP Rating IP20/54

Use the product builder to help you select your product and download the right datasheet.

Launch Product Builder

Available options
Bezel Fixed
Adjustable
Wattage 10W
12W
Colour White
Insert Colour Black
Polished Aluminium
White
Gold
Colour Temperature 2700K
3000K
4000K
Warm Dim (1800 - 3000K)
Beam Angle 11° Beam
15° Beam
18° Beam
24° Beam
36° Beam
50° Beam
Lens Clear
Dimming Fixed Output
1-10V Dimming
DALI Dimming
Mains Dimming
Switch Dimming
Emergency Not required
3 Hour Facility
3 Hour Self Test
3 Hour Central Test
LED - PRODUCT BUILDER & DATA SHEET DOWNLOAD close  X

Quasar Mini Square

Select your option

QSS-M-F-10-W-B-2K-11-CR-0-0
DOWNLOAD DATA SHEET
