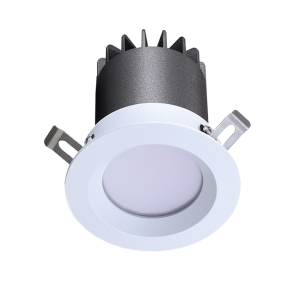

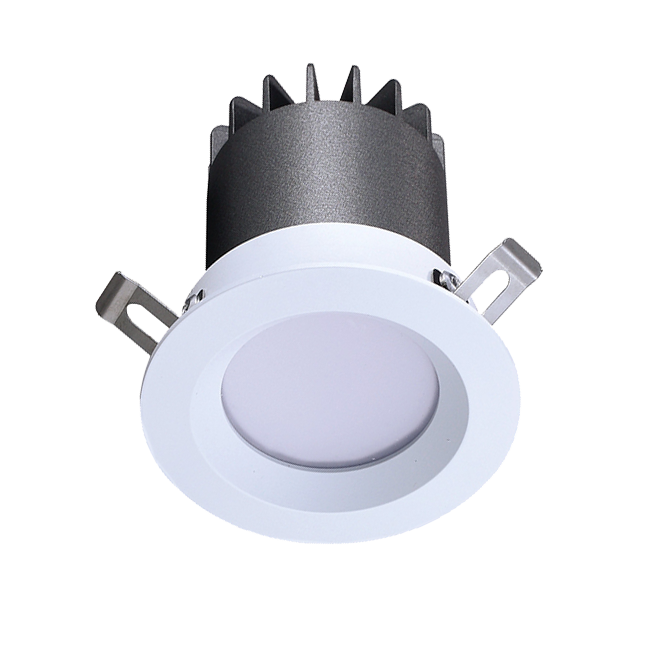

Topaz

The Topaz LED downlight has a 70mm diameter bezel whilst using a CREE LED engine. The heatsink is constructed from die-cast aluminium complete with aluminium bezel and reflector.

The bezel features a recess detail creating a glare friendly cut-off which is also an aesthetically pleasing architectural detail.

Icon View product datasheet

  • CREE LED Engine
  • Cast Aluminium
  • Instant on - no flicker
  • Environmentally Friendly - No mercury or lead enters the environment
  • No RF and electronic magnetic interference
  • Over 50,000 hours life span



General

Dimensions

Ø70 x 75mm

Cutout

Ø65mm

Weight

 0.7kg

Installation

Ceiling Tile
Plasterboard

Voltage

220-240Vac
100-240Vac

Certification

CE, ROHS

Warranty

5 Years



Performance

Colour Rendering

Ra>82

Longevity

50,000 hours

System Power

8.2 W

Exit Lumens

622 lm

Efficiency

75.9 ll/cW

Compliance

Building Regulations
ETL (Energy Technology List)
ECA (Enhanced Capital Allowance)
SKA Rating



Use the product builder to help you select your product and download the right datasheet.

Launch Product Builder

Available options
Wattage 8W - 600 lm
Colour 2700K
3000K
4000K
5000K
Beam Angle 15° Beam
24° Beam
30° Beam
36° Beam
60° Beam
80° Beam
IP Rating IP20 Rated
IP44 Rated
Lens Clear Lens
Frosted Lens
Body Fixed
Adjustable
Dimming Fixed Output
1-10V Dimmable
DALI Dimmable
Mains Dimmable
Emergency Not required
3 Hour Facility
LED - PRODUCT BUILDER & DATA SHEET DOWNLOAD close  X

Topaz

Select your option

TPZ-08-2K-15-20-CR-F-0-0
DOWNLOAD DATA SHEET
