Levo Square Mini

Overview
Details

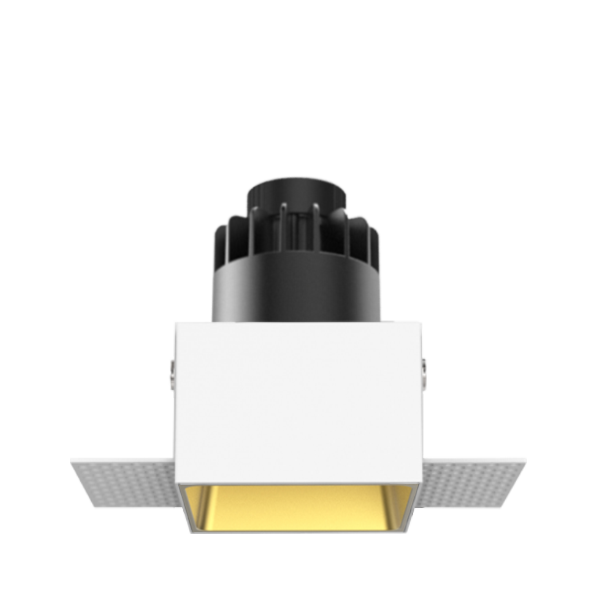

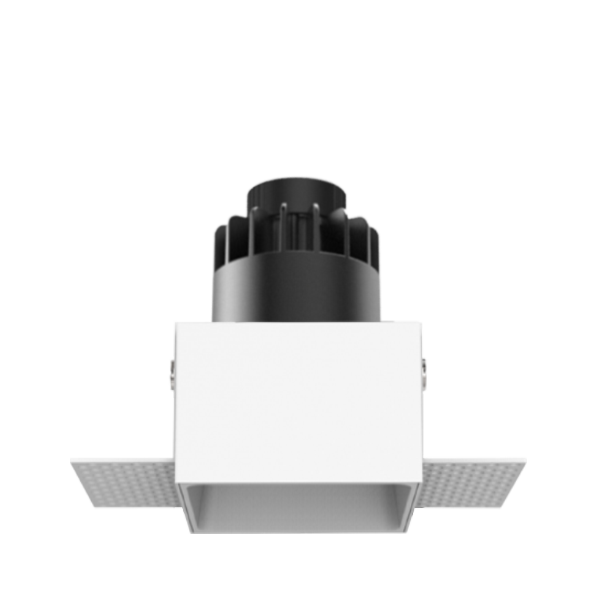

Levo Square Mini Trimless Downlight is a 71 x 71mm plaster in luminaire providing a low glare and functional light output along with a seamless architectural installation. The fitting is constructed from die-cast aluminium and is complete with a choice of white, gold or black inner baffle. The fitting is fitted with a Philips LED providing a luminaire luminous flux of 700 lumens. The luminaire may be tilted to a maximum of 30 degrees.

View product datasheet

Philips LED
Cast Aluminium
Instant on - no flicker
Environmentally Friendly - No mercury or lead enters the environment
No RF and electronic magnetic interference
Over 50,000 hours life span
Available in a range of beam angles

General

Dimensions	71 x 71 x 103mm
Cutout	72 x 72mm
Weight	0.4kg
Beam Angle	15/24/30/36
Installation	Plasterboard
Voltage	220-240Vac
Certification	CE, ROHS
Warranty	5 Years
IP Rating	IP20

Performance

Colour Rendering	Ra>82
Longevity	50,000 hours
System Power	10.0 W
Exit Lumens	700 lm
Efficiency	70.0 ll/cW
Compliance	Building Regulations ETL (Energy Technology List) ECA (Enhanced Capital Allowance) SKA Rating

Use the product builder to help you select your product and download the right datasheet.

Launch Product Builder

Available options

Wattage	10W - 700 lm
Colour	Gold Black White
Colour Temperature	2700K 3000K 4000K
Beam Angle	15 24 30 36
Lens	Clear
Dimming	Fixed Output 1-10V Dimming DALI Dimmable Mains DImming Switch Dimming
Emergency	Not Required 3 Hour Facility 3 Hour Self Test 3 Hour Central Test Central Battery System
